#6 (3/16") Diamond Braid Polyester

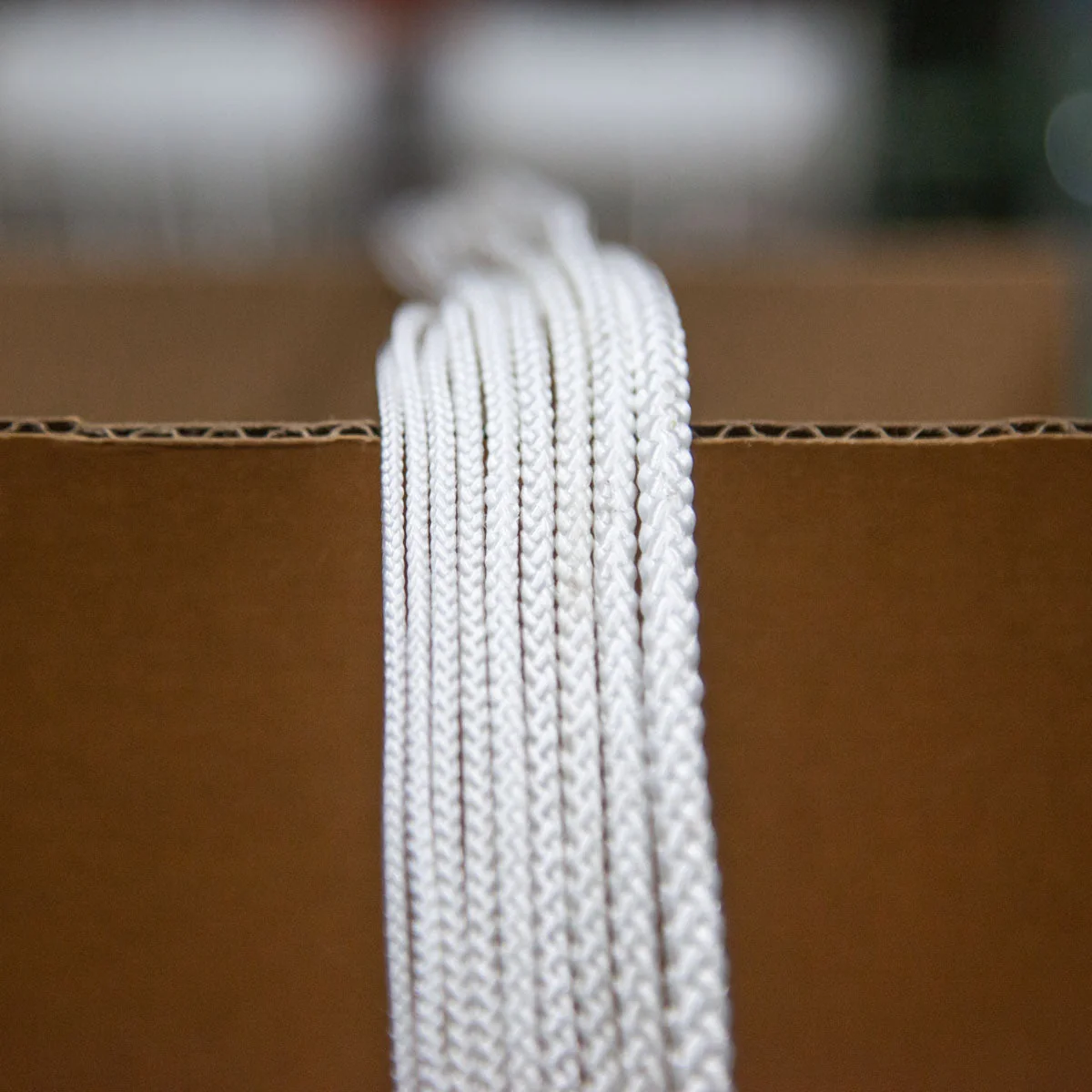

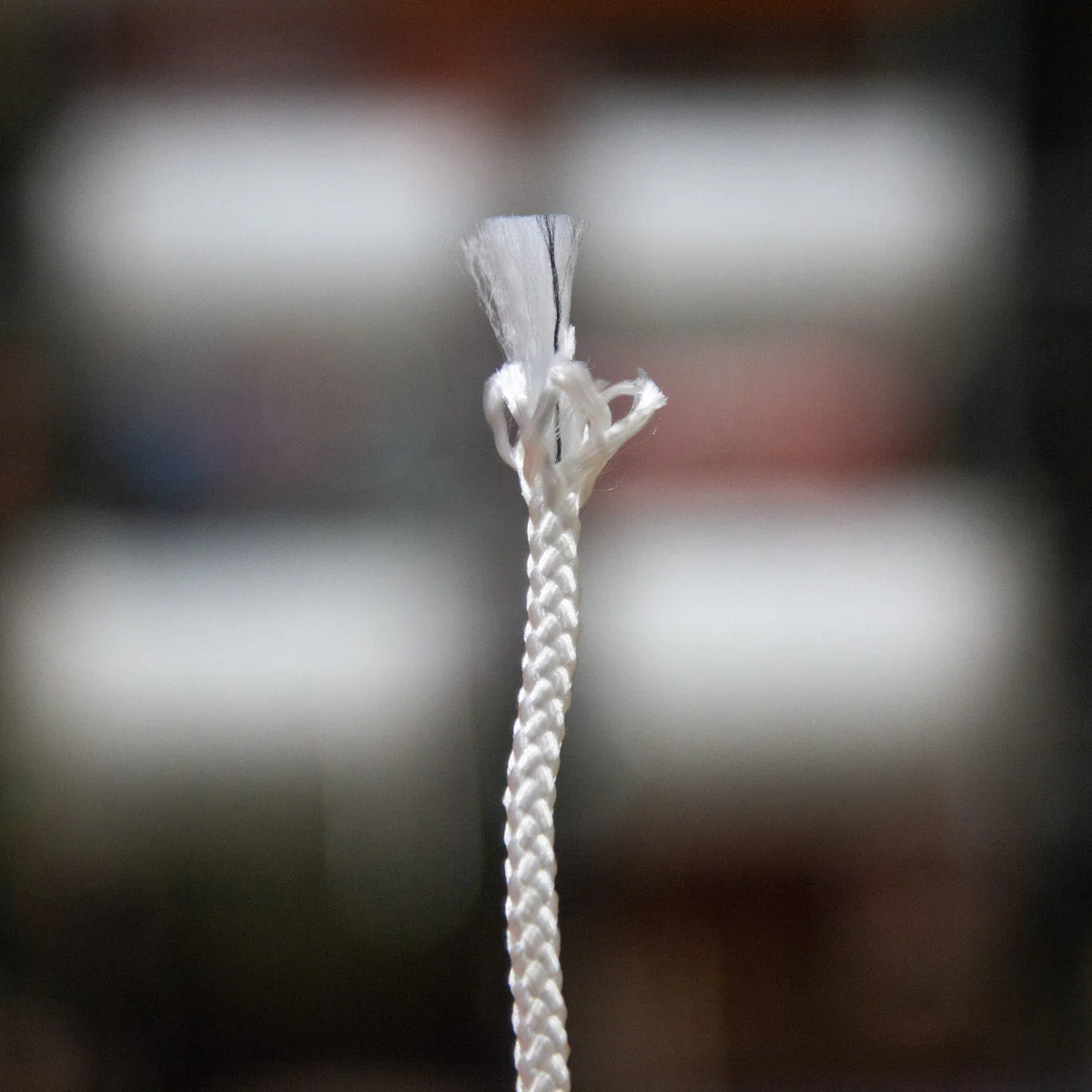

Diamond Braid Polyester offers superior strength, low stretch, excellent protection from abrasive and UV damage. By combining a strong yet light material, this product is both strong and durable. The UV protection allows it to be used reliably outdoors in almost any environment. The construction on this line is a diamond braid over a parallel polyester core. Some people refer to this cord as diamond braid, 8-carrier or basket weave.
| Size | Diameter | Tensile Strength | LBS Per 1K Ft. |
|---|---|---|---|
| #3 | 3/32" | 200 lbs | 2.03 lbs |
| #3.5 | 7/64" | 310 lbs | 3.10 lbs |
| #4 | 1/8" | 437 lbs | 4.11 lbs |
| #4.5 | 9/64" | 546 lbs | 4.89 lbs |
| #5 | 5/32" | 610 lbs | 5.75 lbs |
| #5.5 | 11/64" | 794 lbs | 7.19 lbs |
| #6 | 3/16" | 811 lbs | 8.36 lbs |
| #6.5 | 13/64" | 954 lbs | 9.97 lbs |
| #7 | 7/32" | 1150 lbs | 10.19 lbs |
| #8 | 1/4" | 1487 lbs | 14.10 lbs |
Original: $0.09
-67%$0.09
$0.03Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Diamond Braid Polyester offers superior strength, low stretch, excellent protection from abrasive and UV damage. By combining a strong yet light material, this product is both strong and durable. The UV protection allows it to be used reliably outdoors in almost any environment. The construction on this line is a diamond braid over a parallel polyester core. Some people refer to this cord as diamond braid, 8-carrier or basket weave.
| Size | Diameter | Tensile Strength | LBS Per 1K Ft. |
|---|---|---|---|
| #3 | 3/32" | 200 lbs | 2.03 lbs |
| #3.5 | 7/64" | 310 lbs | 3.10 lbs |
| #4 | 1/8" | 437 lbs | 4.11 lbs |
| #4.5 | 9/64" | 546 lbs | 4.89 lbs |
| #5 | 5/32" | 610 lbs | 5.75 lbs |
| #5.5 | 11/64" | 794 lbs | 7.19 lbs |
| #6 | 3/16" | 811 lbs | 8.36 lbs |
| #6.5 | 13/64" | 954 lbs | 9.97 lbs |
| #7 | 7/32" | 1150 lbs | 10.19 lbs |
| #8 | 1/4" | 1487 lbs | 14.10 lbs |
